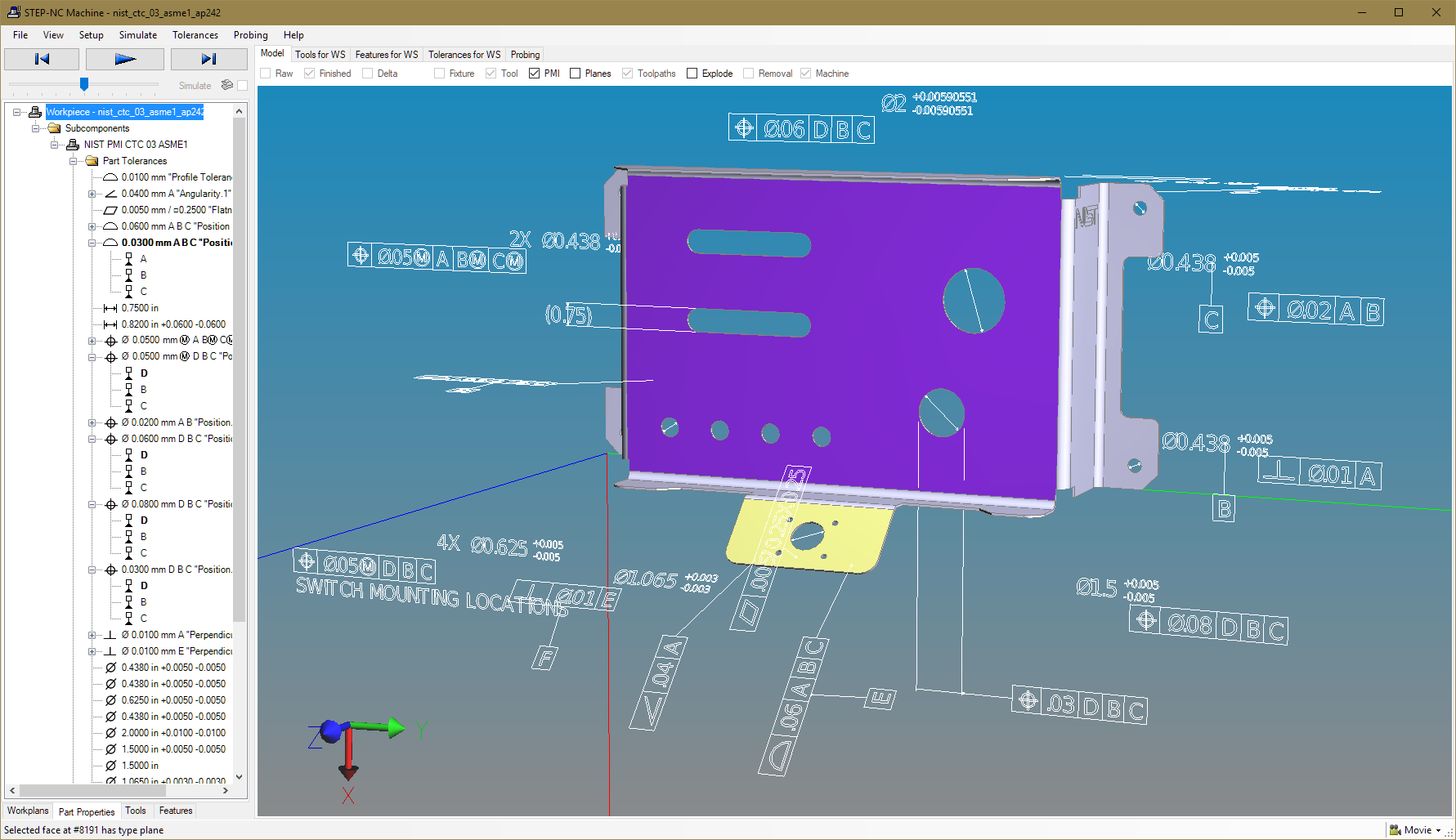

File: nist_ctc_03_asme1_ap242.stp Size: 1.2mb, 17k instances AP242 ed1 file, NIST custom software File Created: 2014-12-19 Image Created: 2015-07-28 NIST-created test file with AP242 presentation and semantic geometric tolerances. The file contains datums and angularity, flatness, position, surface profile, perpendicularity semantic tolerances attached to faces on the geometry. Furthermore the semantic tolerances are attached to polyline presentation tolerances for display. The file also has color presentation, geometric and PMI validation properties.
