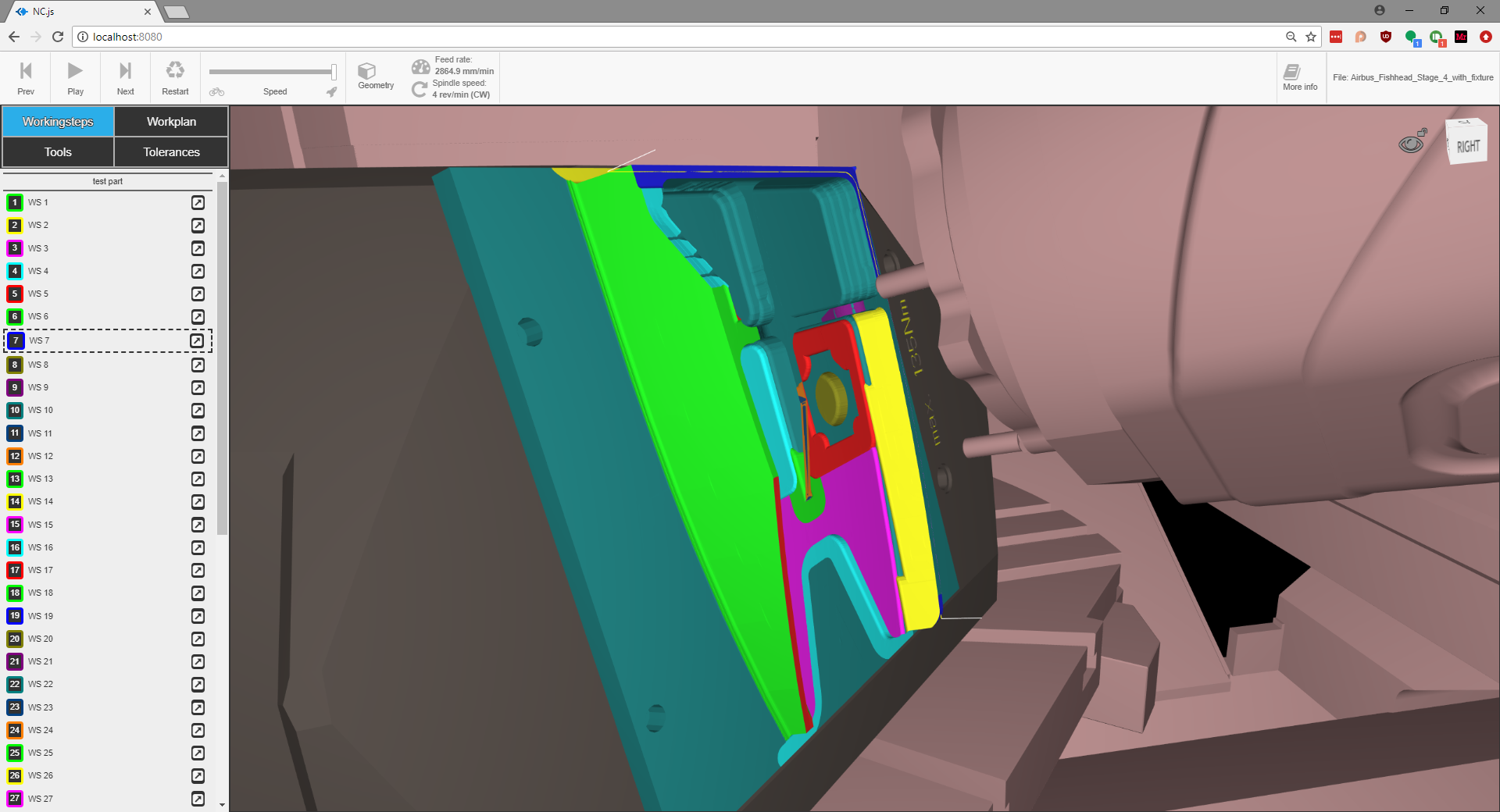

WebGL live display of as-planned IMTS 2018 digital twin machining simulation
with DMG DMC 125 FD duoBlock machine tool model.

File: Airbus_Fishhead_Stage_4_with_fixture.stpnc
Size: 27mb, 209k instances
AP238 file, STEP-NC DLL
File Created:  2018-06-25
Image Created: 2018-06-29

Five-axis machining process for fishhead test part on tilted rotary fixture
with two mounting points.  Assembled into an AP238 data set via the STEP-NC
DLL using machining process data from Catia, inspection process from STEP-NC
Machine Desktop, and AP242 product geometry from Catia, NX, and other
systems.

66 product models and assembly components for workpiece, rawpiece,
fixtures, in-process shape, and tool assemblies, 85 machining
operations and 125 inspection operations.  Color and presentation
tolerance information.
